Description

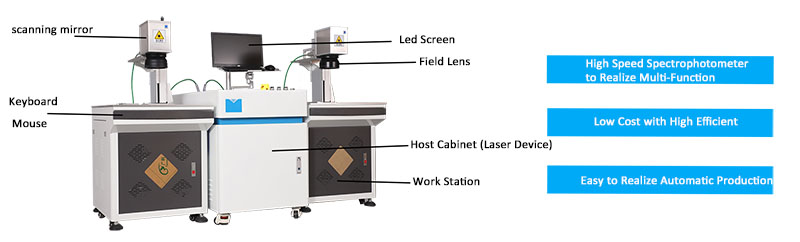

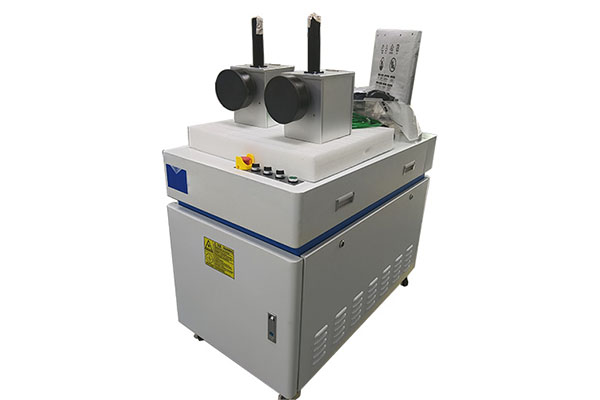

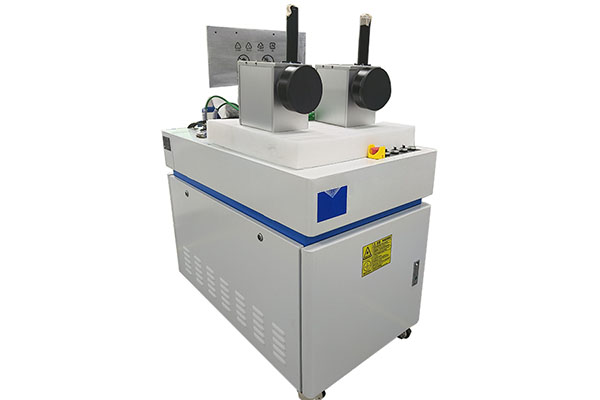

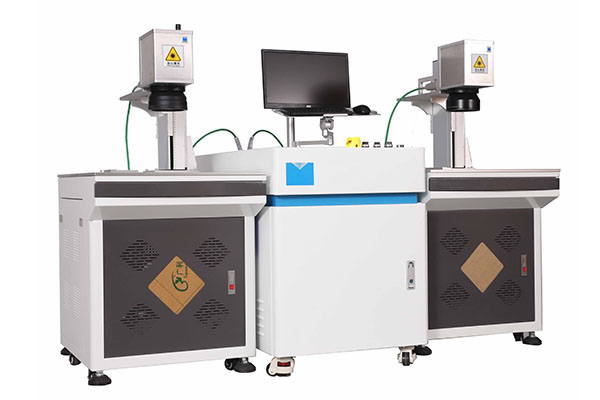

Product Display:
Product Parameters:
| Model | ZN150B | ZN300B | ZN600B |
| Laser Wavelength | 1064nm | ||
| Output Maximum Average Power | 150W | 300W | 600W |
| Max Single Energy | 15J | 80J | 100J |
| Split Fiber Path | ≤4 | ||
| Maximum Laser Peak Power | 1.5KW | 8KW | 10KW |
| Pulse Frequency | ≤200Hz | ||
| Pulse Duration | ≤50ms | ||
| Power Requirement | AC220V (380V) / 50Hz / 60A | ||
| Power Consumption | ≤2KW | ≤3.5KW | ≤12KW |

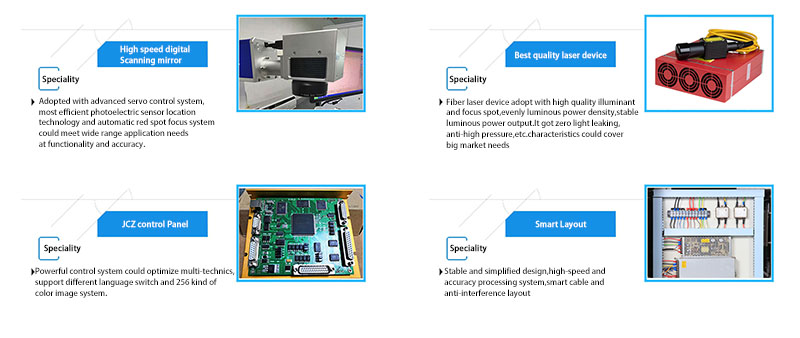

Detail Advantage:
- High speed digital Scanning mirror.
Adopted with advanced servo control system, most efficient photoelectric sensor location technology and automatic red spot focus system could meet wide range application needs at functionality and accuracy. - Best quality laser device.
Fiber laser device adopt with high quality illuminant and focus spot,evenly luminous power density,stable luminous power output.It got zero light leaking,anti-high pressure,etc.characteristics could cover big market needs. - JCZ control Panel.
Powerful control system could optimize multi-technics,support different language switch and 256 kind of color image system. - Smart Layout.
Stable and simplified design,high-speed and accuracy processing system,smart cable and anti-interference layout.
Scope of Application:
