Description
Product Introduction
Technical Parameters
| Model | ZW70D | ZW120D | ZW150D |
| Laser Wavelength | 1064nm | ||
| Beam Quality | <1.2m² | <1.6m² | <2m² |
| Max Laser Output Power | 70W | 120W | 150W |
| Pulse Peak Power | >8KW | >10KW | >13KW |
| Pulse Energy | >0.8mj | >1mj | >1.3mj |
| Pulse Duration | 10-240ns | 26-250ns | 30-350ns |
| Pulse Repetition Rate | 50-100KHz | 20-100KHz | 20-200KHz |
| Output Power Stability | ≦5% p-p* | ||
| Power Requirement | 220V/50Hz/10A | ||

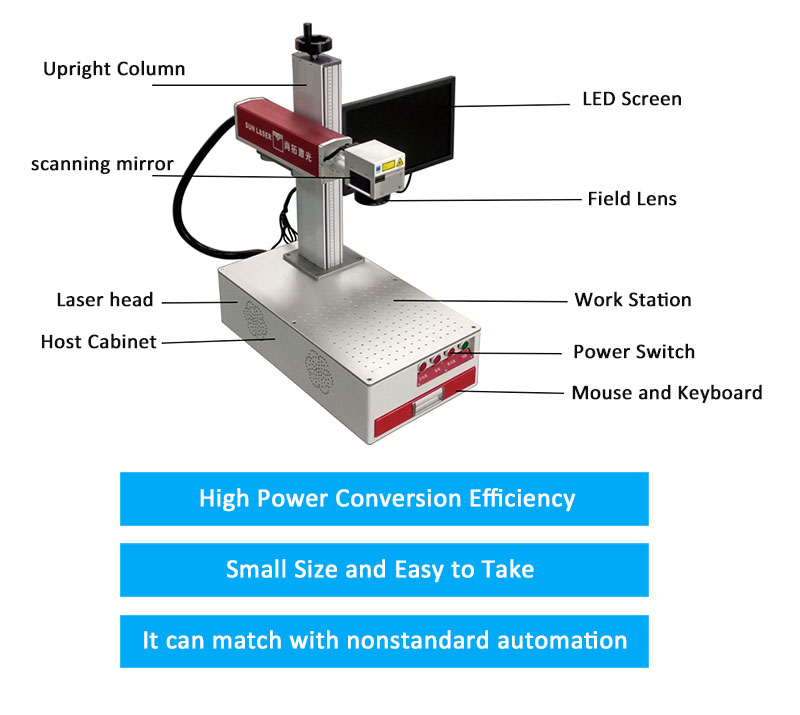

Working Principle and Characteristics

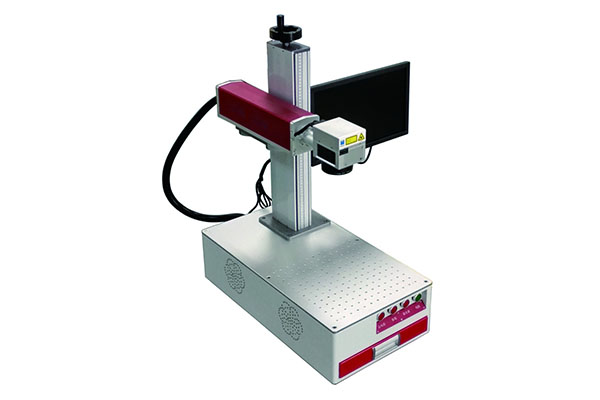

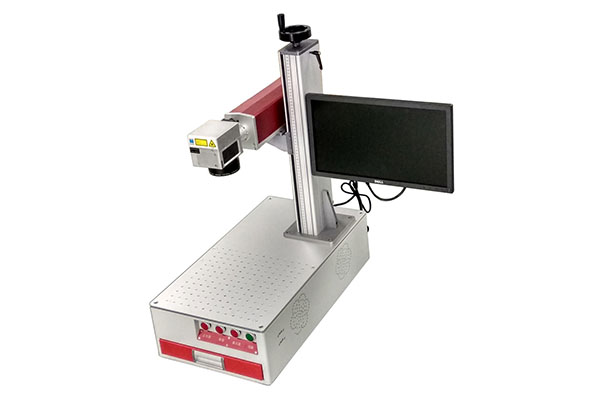

Portable nanosecond Pulse laser welding Machine specifically apply to thin materials,precision parts welding which could do Spot welding,butt welding,stitch welding,sealing welding,etc.It got precise control,small spot focus,high precision location and easy to be automated.

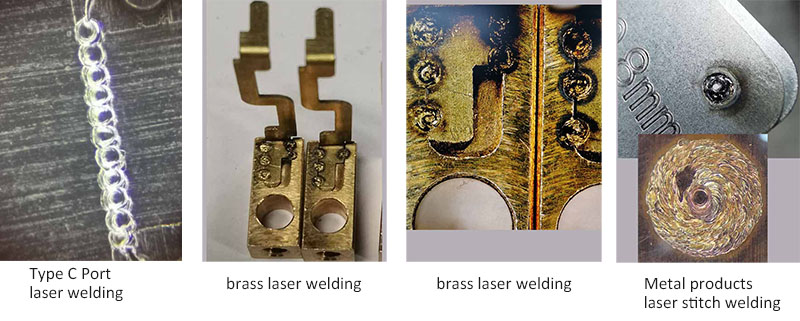

It is widely applied to mobile phone communication,electric component,new energy, jewelry,metal products,precision equipment,auto parts,and handicraft,etc industries.
Portable nanosecond Pulse laser welding Machine characteristic are applied to titanium,nickel,zinc,copper,aluminum,chromium,Niobium,gold,silver,etc metal and alloy,steel,kovar alloy and different alloy material welding
Scope of Application
