Description
Product Introduction

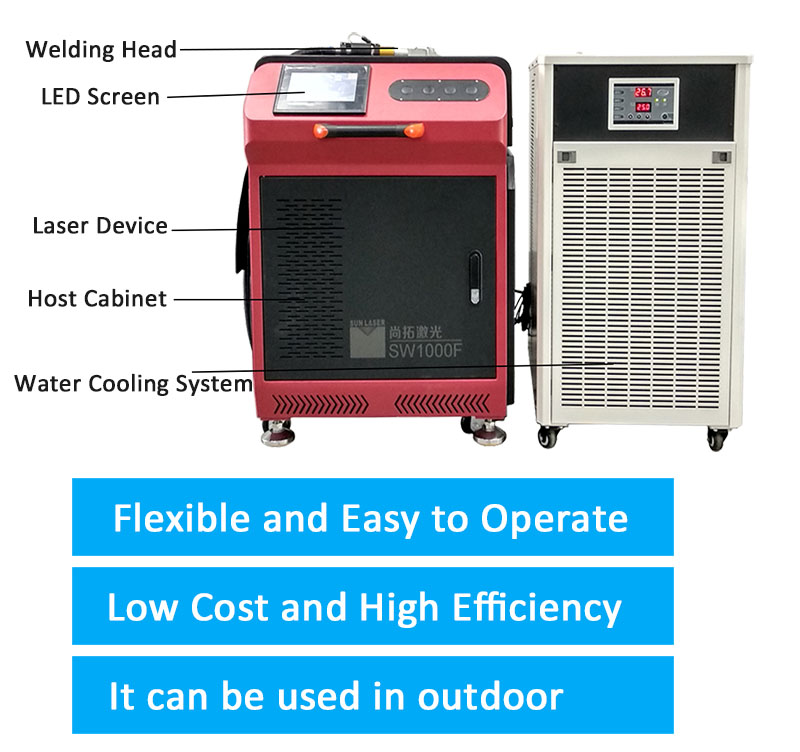

Structural Analysis
Technical Parameters
| Model | Star-FC2 | Star-FC10 | Star-FC20 |
| Laser Type | Fiber Laser | ||
| Laser Wavelength | 1064nm | ||
| Laser Output Maximum Average Power | 200W | 1000W | 2000W |
| Laser Output Power Stability | <3% | ||
| Laser Power Adjustment Range | 10-100 | ||
| Laser Output Mode | QCW/PWN/CW | ||
| Power Requirement | AC220V(380V)/50Hz/60A | ||
| Power Consumption | ≦2KW | ≦3.5KW | ≦6KW |

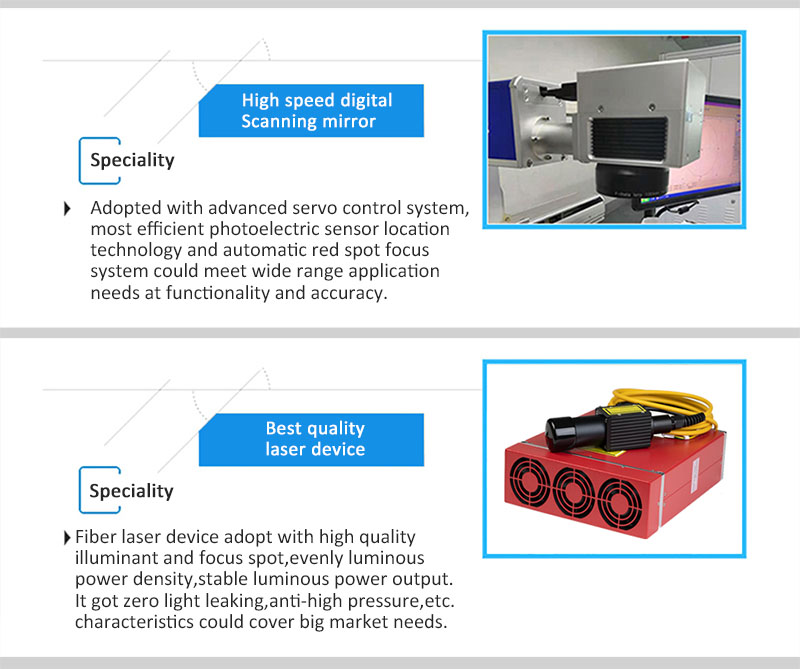

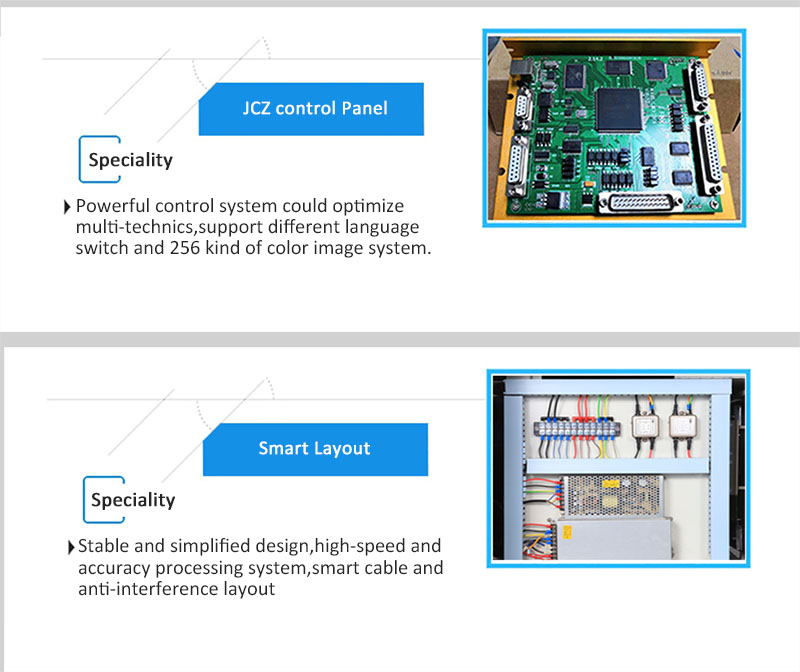

Detail Advantages
Working Principle and Characteristics
1000W handheld laser welding machine:
- Integration of metal sheets welding and cutting;
- The laser control box got QCW,PWM,CW 3 ways light output ways;
- The unique welding head is equipped with wind-blowing control and safe locker as well as high watts handheld welding head.
- It is widely apply to Advertising,metal products,precision equipment,auto parts,and handicraft,etc industries.
The laser welding could apply to titanium,nickel,zinc,copper,aluminum,chromium,Niobium,gold,silver,etc metal and alloy,steel,kovar alloy and different alloy material welding.

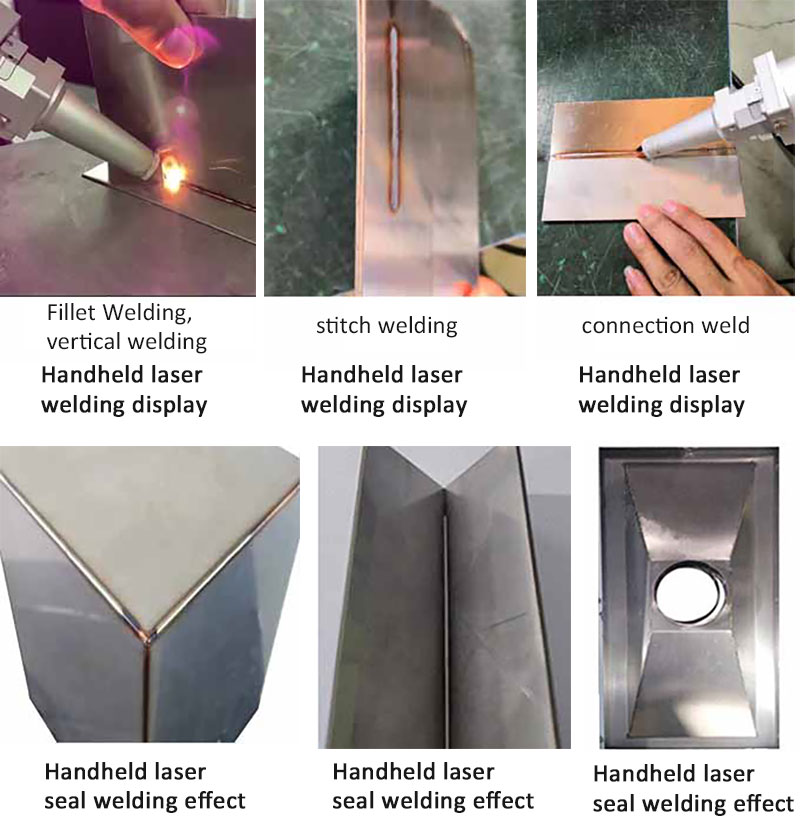

Scope of Application
