Description
Product Introduction

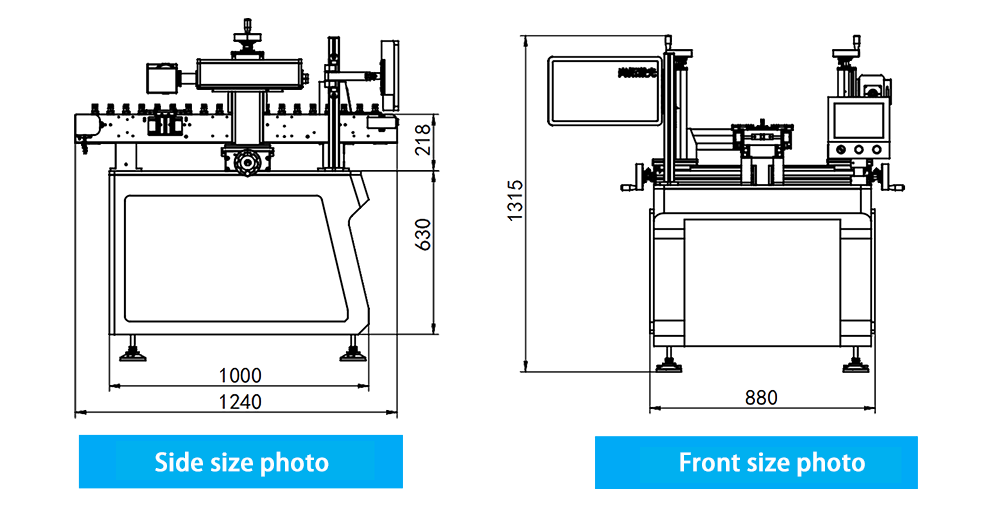

Structural Analysis
Technical Parameters
|
|
SM-20A |
SM-30A |
SM-50A |
|
|
Laser head |
Wavelength |
ND:1064nm |
||
|
Power |
20W |
30W |
50w |
|
|
Power adjusting range |
10-100% |
|||
|
Scanning mirror |
Speed |
250 characters/s |
||
|
Resolution |
0.001mm |
|||
|
Accuracy |
±0.001mm |
|||
|
Optical Characteristics |
Range |
150*150mm(Optional) |
||
|
Wave length |
≥0.04mm |
|||
|
Wave depth |
0.01-3mm(depends one the material) |
|||
|
Min focus spot |
0.04mm |
|||
|
Min character height |
0.1mm |
|||
|
Cooling system |
Cooling way |
Air cooling |
||
|
Power supply |
Power supply |
AC220V/50Hz single-phase AC |
||
|
Power |
600W |
|||

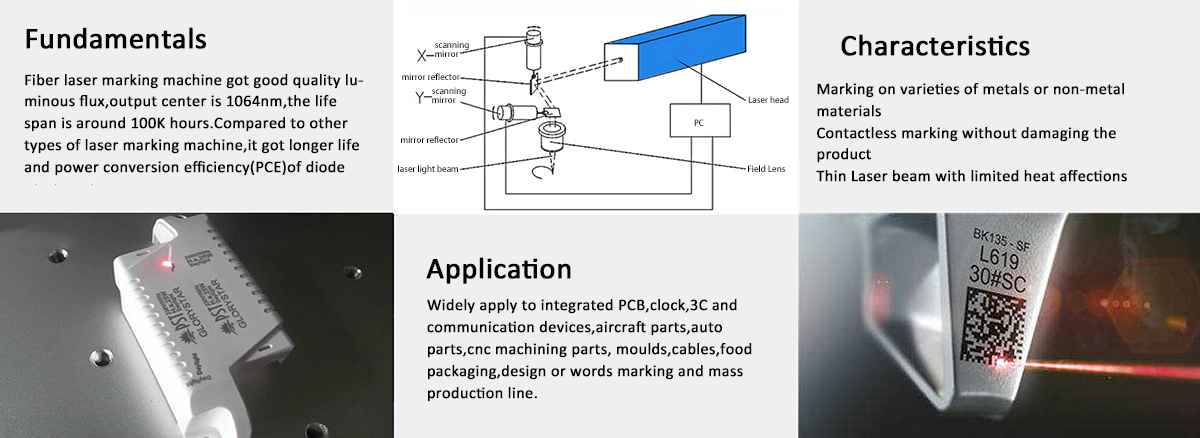

Working principle and characteristics

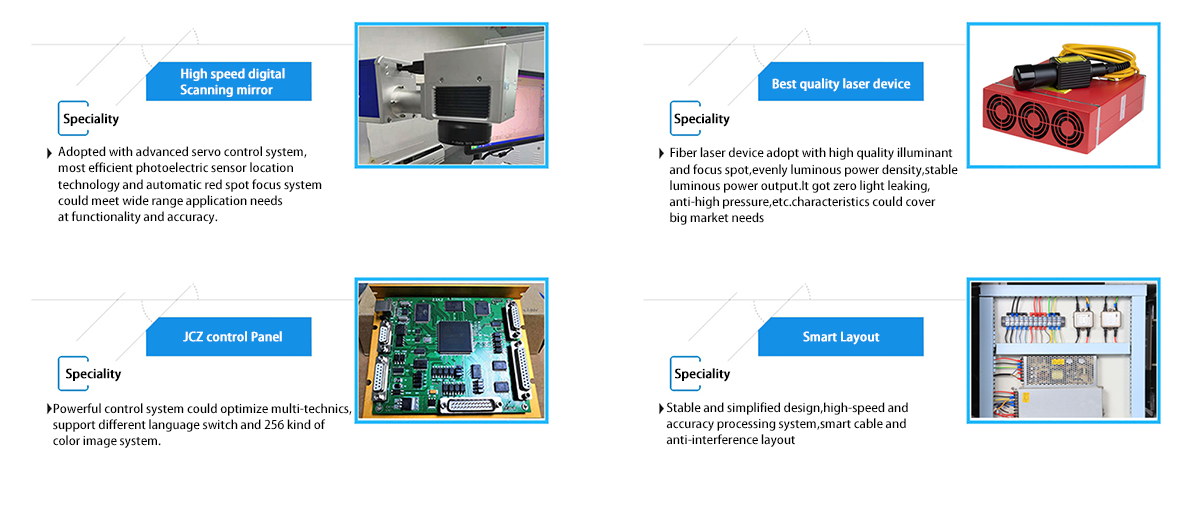

- High speed digital Scanning mirror.
Adopted with advanced servo control system, most efficient photoelectric sensor location technology and automatic red spot focus system could meet wide range application needs at functionality and accuracy. - Best quality laser device.
Fiber laser device adopt with high quality illuminant and focus spot,evenly luminous power density,stable luminous power output.It got zero light leaking,anti-high pressure,etc.characteristics could cover big market needs. - JCZ control Panel.
Powerful control system could optimize multi-technics,support different language switch and 256 kind of color image system. - Smart Layout.
Stable and simplified design,high-speed and accuracy processing system,smart cable and anti-interference layout.
Product Introduction
Scope of Application
Charge Laser Marking
E-Cigerate Pipe Laser Marking
Reuter Laser Marking
E-Cigerate End Laser Marking
