Description

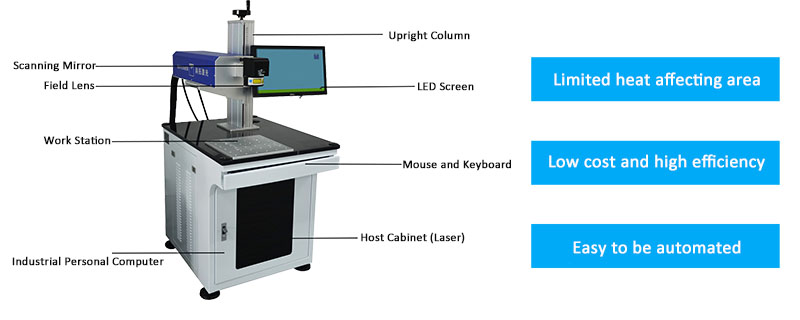

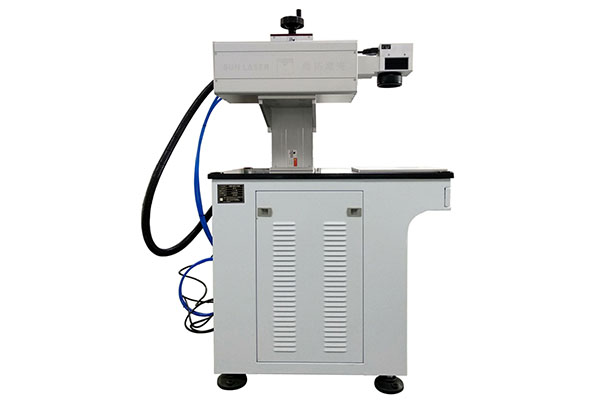

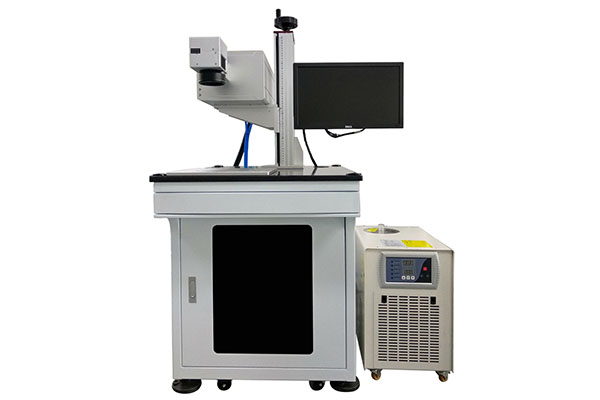

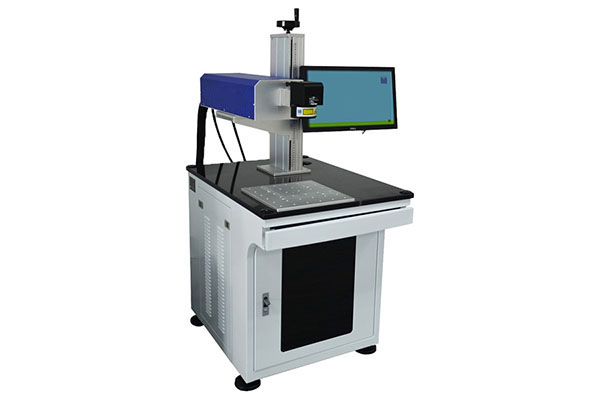

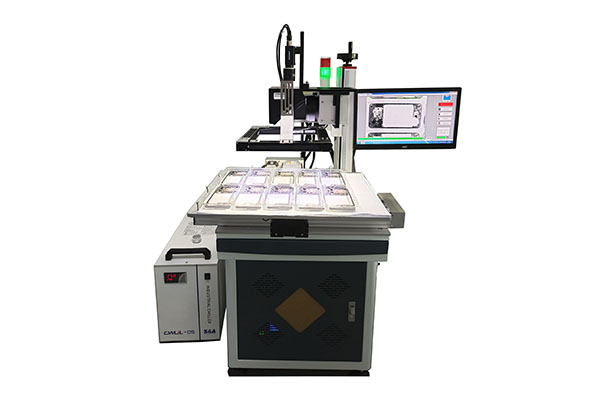

Product Display
Product Parameters
| Technical Parameters | Bot-UV3 | Bot-UV5A | Bot-UV10 | |
| Laser Head | Wavelength | ND: 355nm | ||
| Power | 3W | 5W | 10W | |
| Power Adjusting Range | 10~100% | |||
| Scanning Mirror | Speed | 250 characters/s | ||
| Resolution | 0.001mm | |||
| Accuracy | ±0.001mm | |||
| Optical Characteristics | Range | 150mm*150mm (option) | ||
| Wave Length | ≧0.04mm | |||
| Wave Depth | 0.01~1mm (depends on materials) | |||
| Min Focusing Spot | 0.04mm | |||
| Min Character Height | 0.1mm | |||
| Cooling System | Cooling Way | Water Cooling / Air Cooling | ||
| Power Supply | AC220V/ 50Hz | |||
| Power | 1.2KW | |||

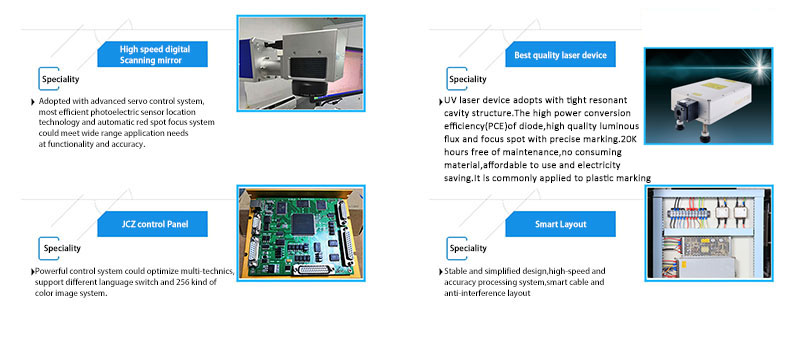

Detail Advantages
- High speed digital Scanning mirror.
Adopted with advanced servo control system, most efficient photoelectric sensor location technology and automatic red spot focus system could meet wide range application needs at functionality and accuracy. - Best quality laser device.
UV laser device adopts with tight resonant cavity structure.The high power conversion efficiency(PCE)of diode,high quality luminous flux and focus spot with precise marking.20K hours free of maintenance,no consuming material,affordable to use and electricity saving.It is commonly applied to plastic marking. - JCZ control Panel.
Powerful control system could optimize multi-technics,support different language switch and 256 kind of color image system. - Smart Layout.
Stable and simplified design,high-speed and accuracy processing system,smart cable and anti-interference layout.

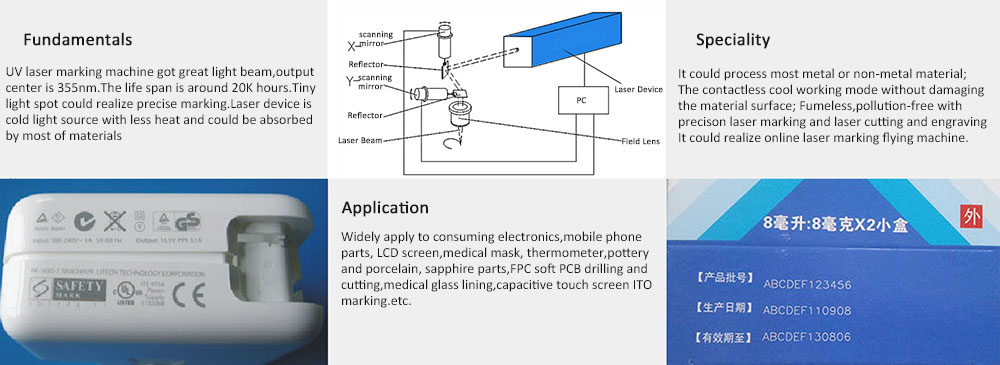

Working Principle and Characteristics
Scope of Application
