Description

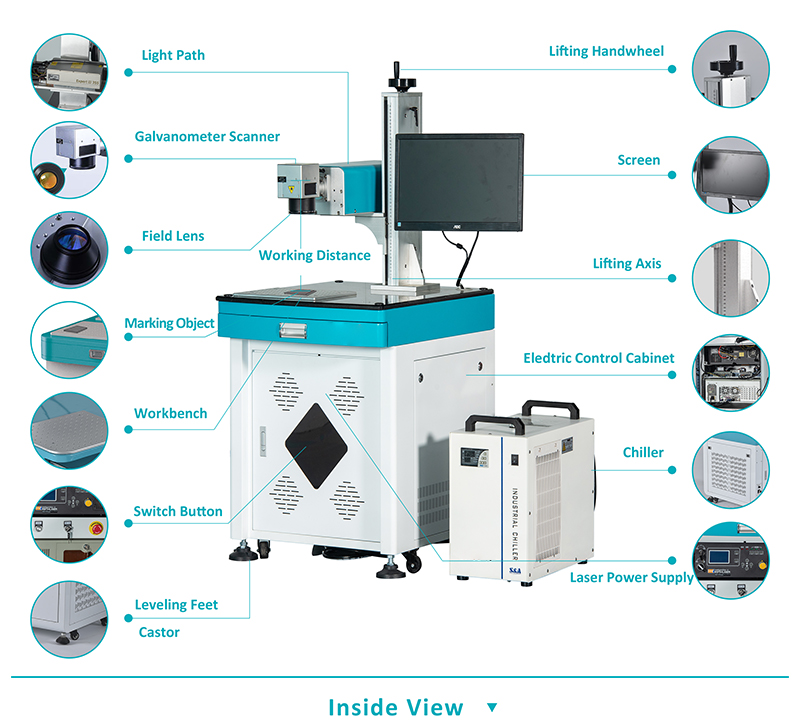

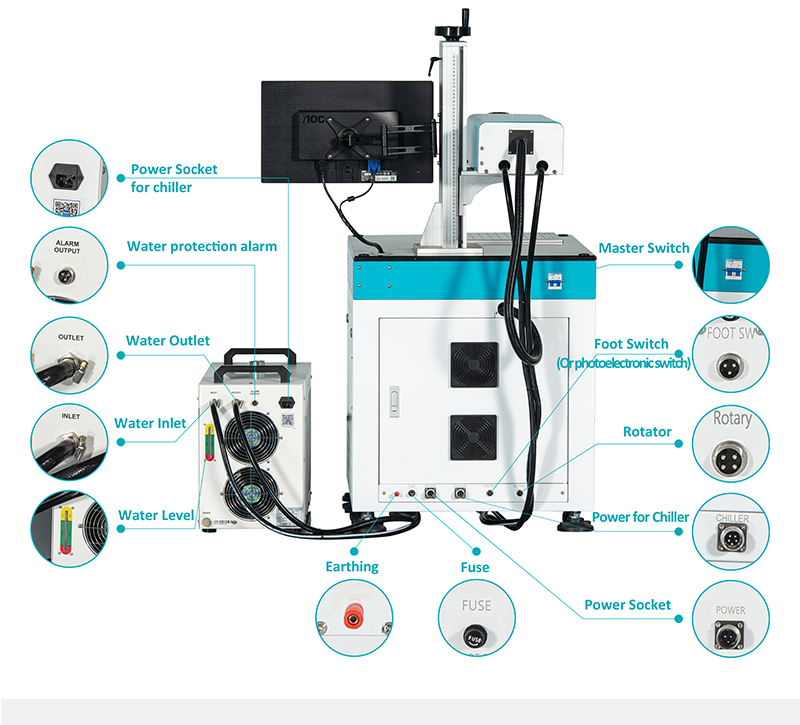

UV laser Marking machine Bot-UV5

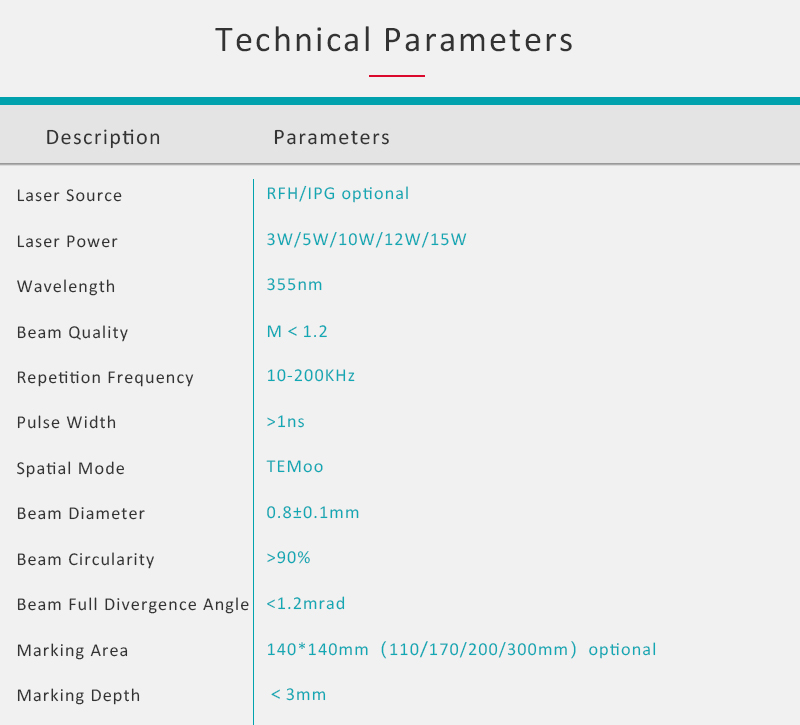

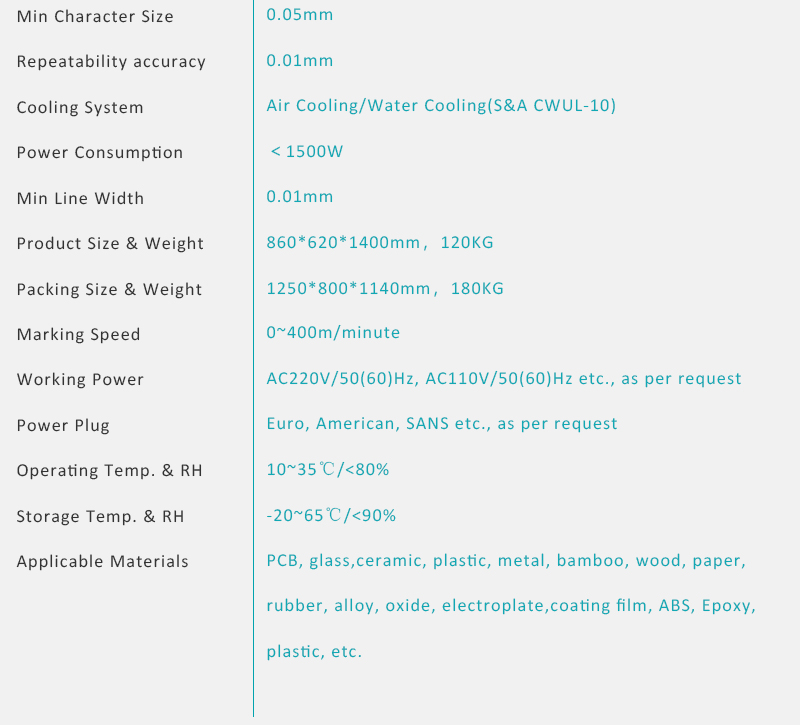

Parameters:

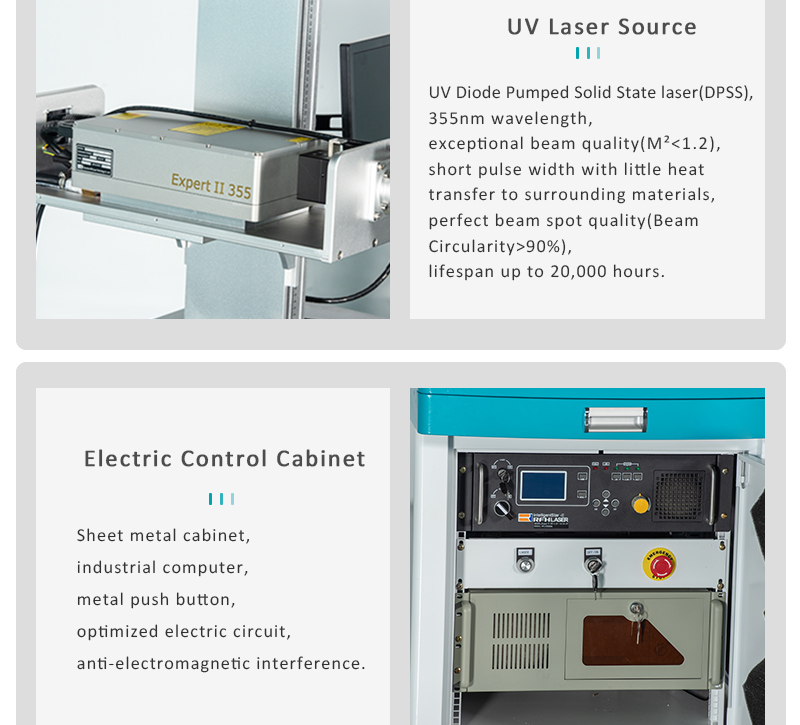

- Laser Source: RFH/IPG Optional
- Laser Power: 3W/5W/10W/12W/15W
- Wavelength: 355nm
- Beam Quality: M<1.2
- Repetition Frequency: 10-200KHz
- Pulse Width: >1ns
- Spatial Mode: TEMoo
- Beam Diameter: 0.8±0.1mm
- Beam Circularity: >90%
- Beam Full Divergence Angle: <1.2mrad
- Marking Area: 140*140mm (110/170/200/300mm) optional
- Marking Depth: <3mm.
