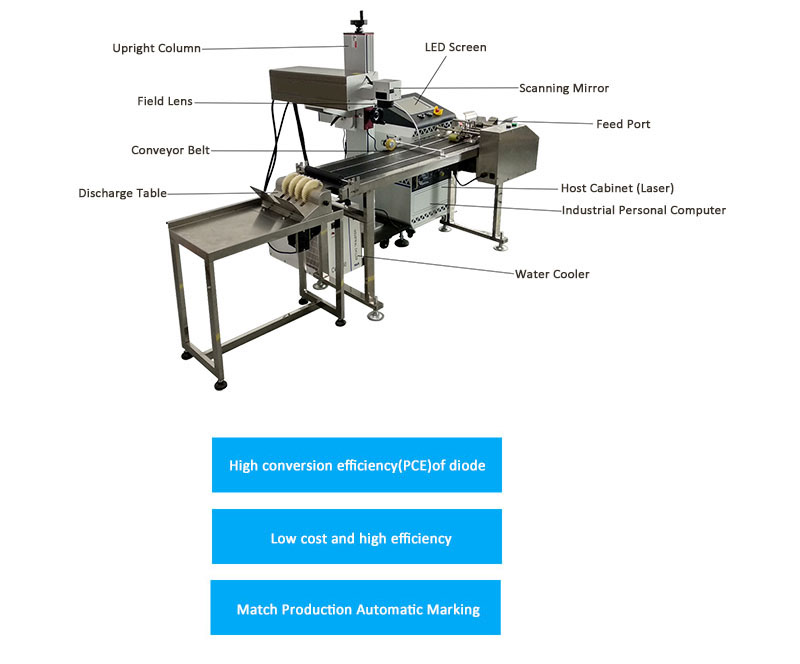

Food package laser marking flying machine

  • 10W /20W /30W Food package laser marking flying machine with clear marking,fast speed,multi-able online marking.high marking quality and no pollution;
  • It could receive external communication,anti-counterfeit character signal and automatic connection function;
  • The whole set could produce data library automatically which is easy to trace product quality,and order inventory;
  • 30K hours zero maintenance,no consuming material,low cost and electricity saving;
  • Environment friendly with RoHS standard.

Description

Product Introduction:

Technical Parameters:

Technical Parameters ZM-10B ZM-20B ZM-30B
Laser Head Wavelength ND: 355nm
Power 10W 20W 30W
Power Adjusting Range 10~100%
Scanning Mirror Speed 250 characters/s
Resolution 0.001mm
Accuracy ±0.001mm
Optical Characteristics Range 150mm*150mm (option)
Wave Length ≧0.04mm
Wave Depth 0.01~1mm (depends on materials)
Min Focusing Spot 0.04mm
Min Character Height 0.2mm
Cooling System Cooling Way Water Cooling / Air Cooling
Power Supply AC220V/ 50Hz
Power 1.2KW

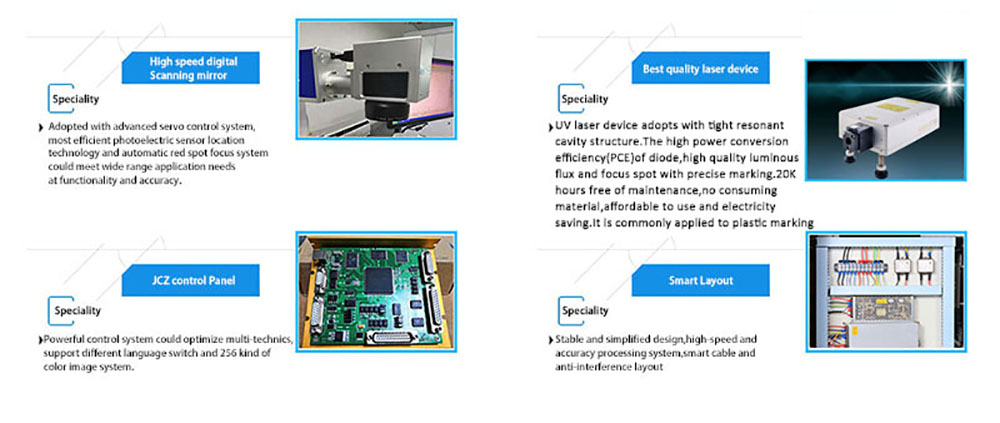

Detail Advantages
:

  • High speed digital Scanning mirror.
    Adopted with advanced servo control system, most efficient photoelectric sensor location technology and automatic red spot focus system could meet wide range application needs at functionality and accuracy.
  • Best quality laser device.
    UV laser device adopts with tight resonant cavity structure.The high power conversion efficiency(PCE)of diode,high quality luminous flux and focus spot with precise marking.20K hours free of maintenance,no consuming material,affordable to use and electricity saving.It is commonly applied to plastic marking.
  • JCZ control Panel.
    Powerful control system could optimize multi-technics,support different language switch and 256 kind of color image system.
  • Smart Layout.
    Stable and simplified design,high-speed and accuracy processing system,smart cable and anti-interference layout.

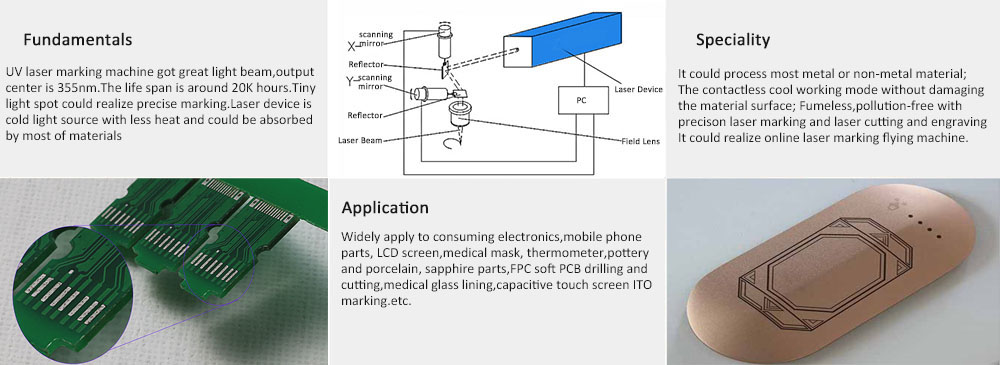

Working Principle and Characteristics

Scope of Application

Additional information

color

red, blue
