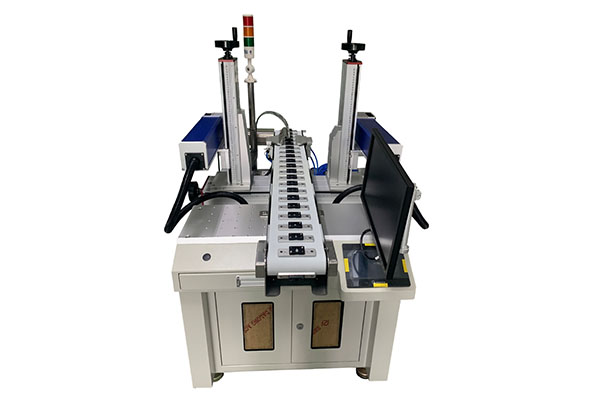

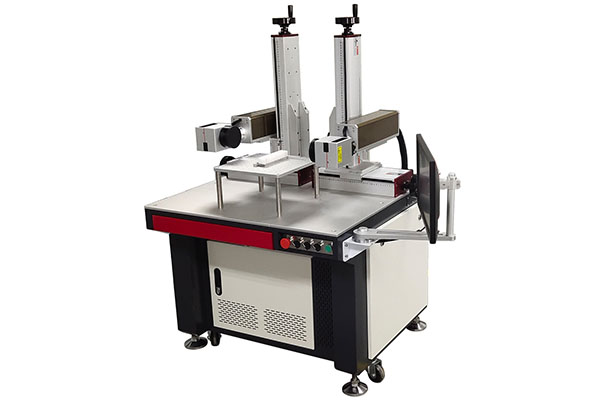

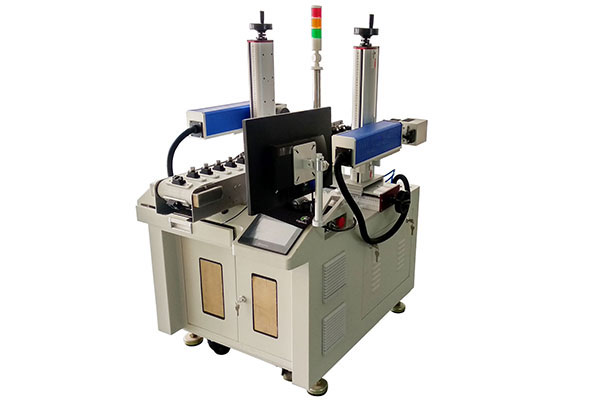

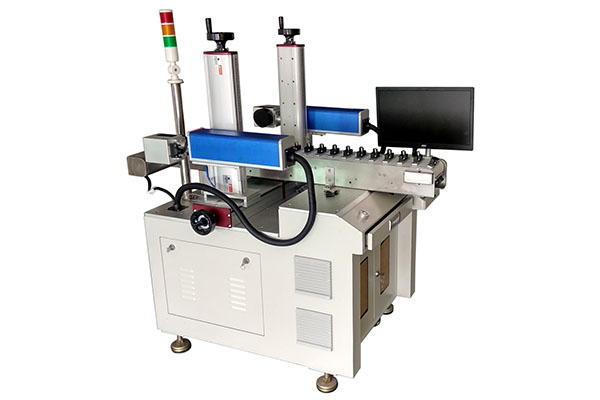

Double-head Automatic Fiber laser Marking Machine

For 20W/30W/50W double-head Automatic Fiber laser Marking Machine could realize double side laser marking;
The power conversion efficiency(PCE)of diode could reach max to 30%;
Air-cooling ventilation system with ROHS standard;
High accuracy and precision with resolution could reach 2540dpi.
Life time span with 100K hours without any maintenance.

Description

Product Introduction

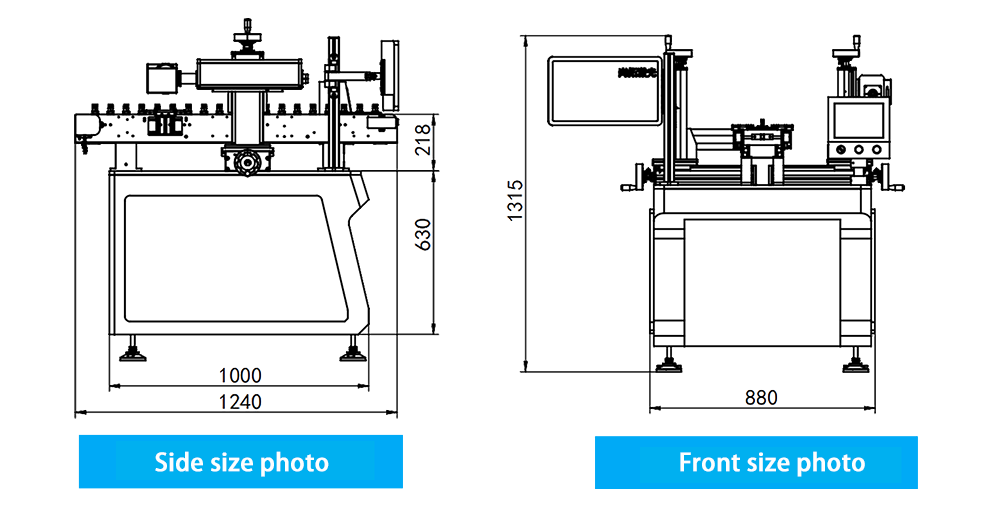

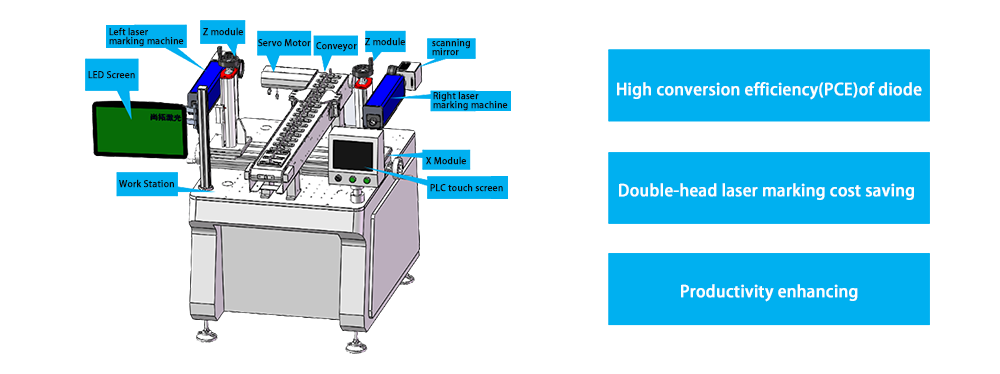

Structural Analysis

Technical Parameters

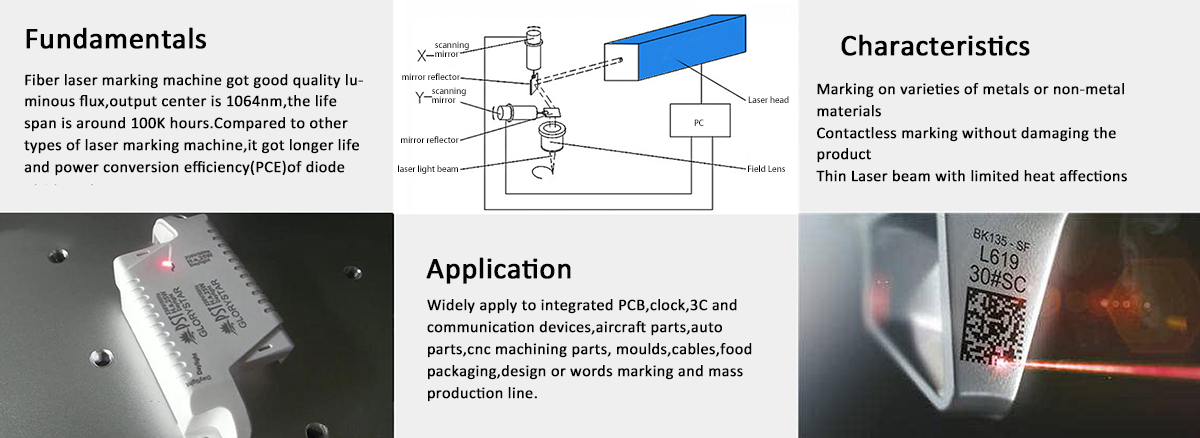

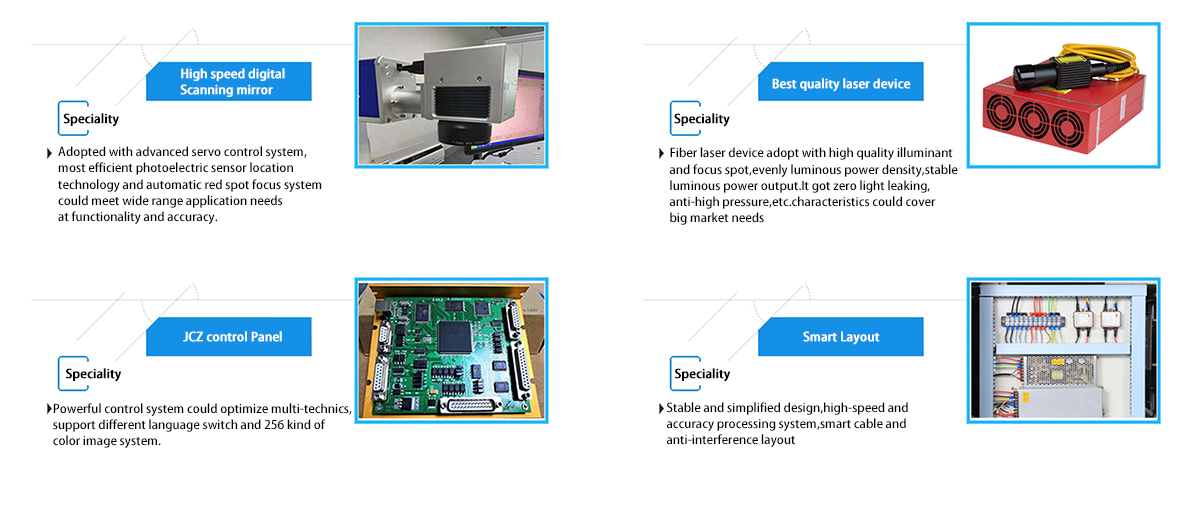

Working principle and characteristics

High speed digital Scanning mirror.
Adopted with advanced servo control system, most efficient photoelectric sensor location technology and automatic red spot focus system could meet wide range application needs at functionality and accuracy.
Best quality laser device.
Fiber laser device adopt with high quality illuminant and focus spot,evenly luminous power density,stable luminous power output.It got zero light leaking,anti-high pressure,etc.characteristics could cover big market needs.
JCZ control Panel.
Powerful control system could optimize multi-technics,support different language switch and 256 kind of color image system.
Smart Layout.
Stable and simplified design,high-speed and accuracy processing system,smart cable and anti-interference layout.
